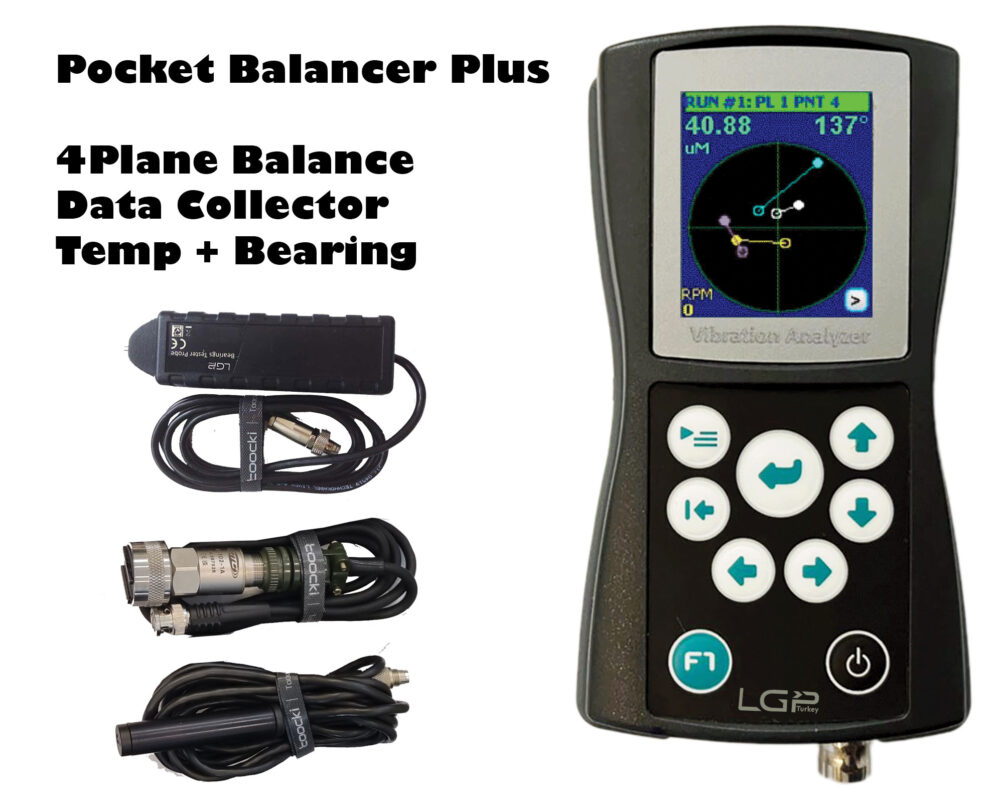

LGP Pocket Balancer Plus

The LGP Pocket Balancer Pro Vibration analyser & potable balance System is a device that can measure the vibration and temperature of industrial machines and perform dynamic balancing of rotating machinery. The device can measure overall vibration parameters, FFT spectrum analysis, immediate evaluation against ISO 10816 standard, condition monitoring by route based measurements and data collection. It can also measure the speed of rotation by means of contactless optical sensor, and the temperature by means of infrared thermometer. The device can communicate with the PC via USB or Wi-Fi, and provide professional PC analysis software. The device can perform horizontal and vertical machine alignment, Cardan shaft alignment, and other options. The device can also perform dynamic balancing of rotating machinery by using laser alignment tools and vibration sensors. The device has a high accuracy, a long operating time, and a low cost compared to other vibration analyzers and balance systems.

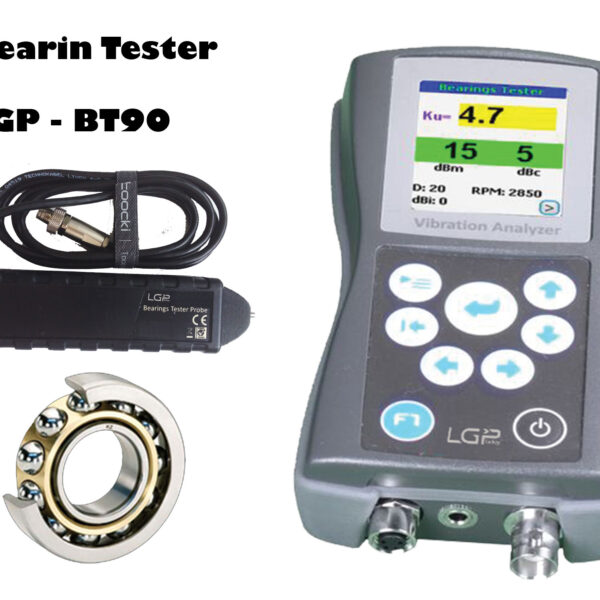

LGP Pocket Balancer Plus: Vibration + 4 Plance Balance + Bearing Tester

Technical specifications:

Amplifier type Charge or ICP (piezoelectric accelerometers)
Signal VHC, Peak-Peak, 0-Peak, RMS
Measured parameters Acceleration, Velocity, displacement, frequency, audio output
Display resolution QVGA, 320 x 240 Pixel; Dimensions: 3.5 inch diagonal
Frequency range 1 Hz to 10 kHz




Dynamic frequency range

  Acceleration:  1 – 10,000 Hz (-3 dB) & 0.01 – 500 m / s 2
  Velocity:

1 – 16 Hz (-3 dB) & 0.8 – 5000 mm / s

1-80Hz (-3dB) & 0.2 to 390 mm/s

1 – 5000 Hz (-3 dB) & 0.1 – 79 mm / s

Displacement:

1 – 16 Hz (-3 dB) & 0.05 – 50 mm

1 – 80 Hz (-3 dB) & 0.05 – 2.1 mm

1 – 1000 Hz (-3dB) & 0.003 – 0.02 mm

Accuracy ± 2%
Sampling frequency 32 kSPS
Frequency resolution Fmax / FFT resolution
FFT Spectrum resolution 400, 800, 1600 lines
Weight functions (windows) Hanning, rectangular
Trigger Mode Free and internal
Housing ABS
Environmental protection    IP65
Operating temperature range -10ºC to 50ºC
Relative humidity up to 80%
Battery, continuous operation time e 4.8V, 8 hours
Automatic shutdown, adjustable delay 2 to 99 minutes
Data storage 4GB microSD card
PC communication interface USB (Virtual Serial port for firmware upgrade)
