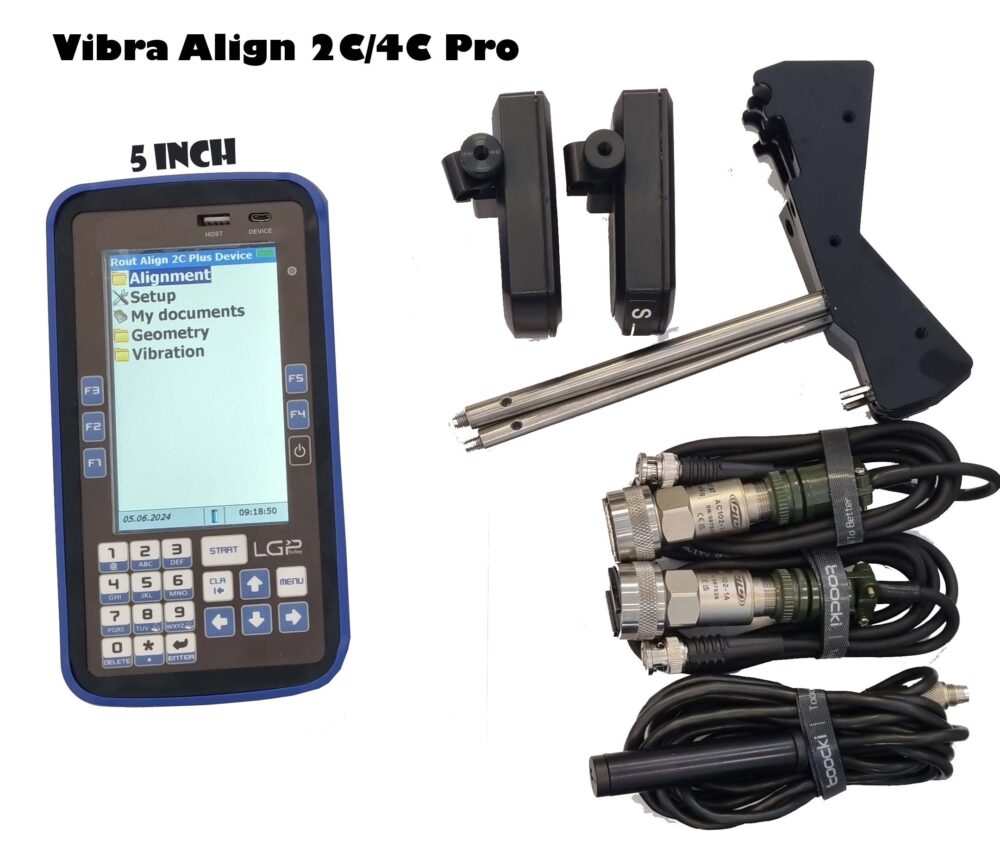

LGP Vibra Align 2C/4C Pro

LGP Vibra Align 2C/4C Pro

The LGP Vibra Align 2C/4C Pro is a multi-functional industrial vibration analyzer that integrates vibration analysis, laser shaft alignment, dynamic balancing, bearing testing, acoustic analysis, and tachometry into a single portable system. Designed for predictive maintenance, it helps improve machinery reliability and reduce downtime.

Categories: , Tags: , ,
FacebookTwitterPinterestRedditDeliciousLinkedinWhatsappTelegramEmail

About LGP Vibra Align 2C/4C Pro:

The LGP Vibra Align 2C/4C Pro is a multi-function industrial vibration analyzer that combines vibration analysis, laser shaft alignment, dynamic balancing, bearing testing, acoustic analysis, and tachometry into a single portable and precise system.



The optional bearing test module with Shock Pulse technology is available as an add-on and can be activated upon request when ordering.



Capabilities:

  • Professional Two-Plane Dynamic Balancing
  • Phase, RPM, Acceleration & Displacement Analysis
  • 4-Channel High-Precision Data Collector
  • Fast & Accurate Laser Shaft Alignment
  • Bearing Lubrication Testing & Failure Diagnostics



Key Features:

  • Lightweight & Portable
  • Non-Contact Tachometry
  • Bearing Lubrication Testing
  • Run-Up & Coast-Down Analysis
  • Internal & External Phase Angle Measurement
  • Unlimited Installation Software
  • Expandable with Triaxial Sensor & Current Clamp



This multi-functional industrial vibration analyzer is truly the Swiss Army knife of condition monitoring – an exceptional choice for maintenance, reliability, and industrial engineering teams.



This device comes in three modules:

For further information, you can see video of the device on YouTube:

Technical specifications Of LGP Vibra Align 2C/4C Pro:

  • IEPE/ICP or charge type accelerometers with known sensitivity switchable
  • proximity sensor, Optical RPM transducer
  • AD conversion – 24 bits.
  • Display: TFT¼.
  • VGA built-in
  • back light: sunlight-readable with standard or 5” or 7” screen.
  • Number of channels: True 2/ True 4 analog channel for simultaneous
  • acquisition of Vibration & 01 channel for reference signal input for phase/RPM measurement.
  • Dynamic range: 24 bits is 140dB & Signal to Noise ratio 106dB.
  • CPU Processor: 400MHz.
  • PC Communication interface: USB and mini-USB.
  • Operating Temperature: -10 C to 55 C.
  • Environmental Protection: IP 65 with
  • drop test.
  • Ruggedized aluminum enclosure with TPE protector.
  • Dimensions:210 x 170 x 50mm.
  • Weight: 1 kg.
  • Displacement, velocity, acceleration measurements and spectrum analysis
  • Frequency and time domain measurements, enveloping detector
  • Balancing program – up to 2 planes.
  • Laser alignment – advanced horizontal, vertical mechanism alignment
  • On site express rolling bearings tester
  • Standard file system FAT16, use of standard SD (or mini, micro SD) card provide up to 1GB memory for data storage
  • Standard file system provide user defined folders structure and time and date stamped data files
  • Firmware – upgradeable by user
  • Wide temperature range graphical LCD (Liquid Crystal Display) with 160 x 160 pixels and white LED backlight
  • 2100 mAh NiMH battery
  • Battery charger
  • USB communication interface
  • Concept Windows® based data base and analysis software
