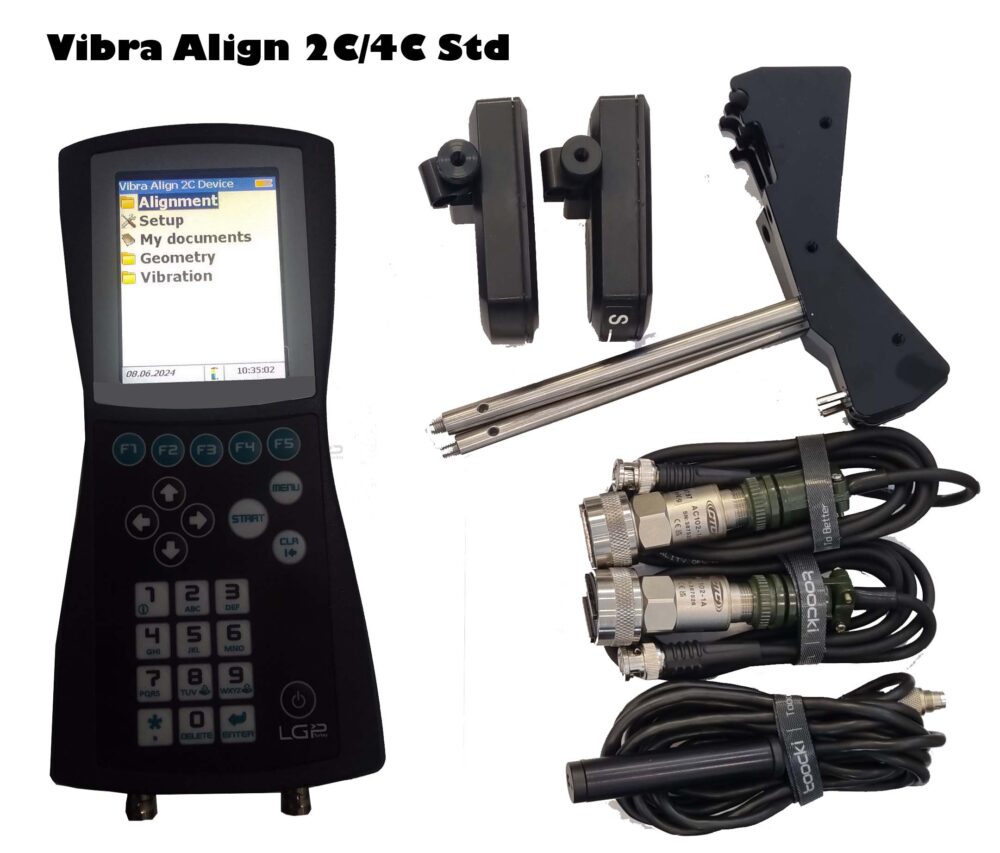

LGP Vibra Align 2C/4C Standard (STD)

LGP Vibra Align 2C/4C Standard (STD)

The Vibra Align 2C/4C Standard (STD) is an all-in-one condition monitoring device for vibration analysis, shaft alignment, dynamic balancing & bearing testing. Ideal for oil & gas, power plants & manufacturing. Save costs & boost efficiency!

Categories: ,
FacebookTwitterPinterestRedditDeliciousLinkedinWhatsappTelegramEmail

About LGP Vibra Align 2C/4C Standard (STD):

The LGP Vibra Align 2C/4C Standard (STD) is an all-in-one condition monitoring system that eliminates the need to purchase multiple expensive tools separately. By combining vibration analysis, dynamic balancing, shaft alignment, bearing testing, acoustic analysis, and tachometry, this device provides a comprehensive solution for industrial machinery diagnostics.



Say goodbye to carrying multiple tools around the plant — because Vibra Align does it all:

  • Bearing testing
  • Vibration data collection
  • Dynamic balancing
  • Shaft alignment — all in one device.

 

Capabilities:

  • Professional Two-Plane Dynamic Balancing
  • Phase, RPM, Acceleration & Displacement Analysis
  • 4-Channel High-Precision Data Collector
  • Fast & Accurate Laser Shaft Alignment
  • Bearing Lubrication Testing & Failure Diagnostics



Advanced Features:

  • Run-Up & Coast-Down Analysis Support
  • Unlimited, High-Performance Analysis Software
  • Triaxial (3-Axis) Sensor Compatibility
  • Phase Measurement Without Tachometer (Non-Contact)
  • Optional Current Clamp for Electrical Fault Analysis



With this multi-functional condition monitoring device, you will have a complete and scalable solution ideal for oil & gas, power generation, and manufacturing industries.



This device comes in three modules:

For further information, you can see video of the device on YouTube:

Technical specifications Of LGP Vibra Align 2C/4C Standard (STD):

  • IEPE/ICP or charge type accelerometers with known sensitivity switchable
  • proximity sensor, Optical RPM transducer
  • AD conversion – 24 bits.
  • Display: TFT¼.
  • VGA built-in
  • back light: sunlight-readable with standard or 5” or 7” screen.
  • Number of channels: True 2/ True 4 analog channel for simultaneous
  • acquisition of Vibration & 01 channel for reference signal input for phase/RPM measurement.
  • Dynamic range: 24 bits is 140dB & Signal to Noise ratio 106dB.
  • CPU Processor: 400MHz.
  • PC Communication interface: USB and mini-USB.
  • Operating Temperature: -10 C to 55 C.
  • Environmental Protection: IP 65 with
  • drop test.
  • Ruggedized aluminum enclosure with TPE protector.
  • Dimensions:210 x 170 x 50mm.
  • Weight: 1 kg.
  • Displacement, velocity, acceleration measurements and spectrum analysis
  • Frequency and time domain measurements, enveloping detector
  • Balancing program – up to 2 planes.
  • Laser alignment – advanced horizontal, vertical mechanism alignment
  • On site express rolling bearings tester
  • Standard file system FAT16, use of standard SD (or mini, micro SD) card provide up to 1GB memory for data storage
  • Standard file system provide user defined folders structure and time and date stamped data files
  • Firmware – upgradeable by user
  • Wide temperature range graphical LCD (Liquid Crystal Display) with 160 x 160 pixels and white LED backlight
  • 2100 mAh NiMH battery
  • Battery charger
  • USB communication interface
  • Concept Windows® based data base and analysis software
